TOP2000B 20-40 mm welding width No fold PE Plastic heat banner welder
TOP2000B 20-40 mm welding width No fold PE Plastic heat banner welder
TOP2000B 20-40 mm welding width No fold PE Plastic heat banner welder

TOP2000B 20-40 mm welding width No fold PE Plastic heat banner welder

USD 1386.00-1460.00 / unidad
Cantidad mínima de pedido:
1 unidad
50 unidad / El
Lugar original de origen:
Ningbo or Shanghai
Plazo de entrega:
In 20 days. De
  • Place of Origin:CN;ZHE
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Brand Name:OEM
  • Rated Duty Cycle:Inquire
  • Voltage:220V
  • Current:1600 W
  • Rated Capacity:Inquire
  • Certification:CE , ROHS
  • Usage:Banner Welding
  • Dimensions:420*340*270 mm
  • Model Number:BW-TOP2000B
  • Weight:19Kg/22 Kg
  • Type:Other


******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

Welcome  to  Boway

Core Competence

We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
It can weld advertising inkjet fabric , inkjet clothlight box cloth ,PVC banner cloth ,
plastic clothtarpaulin and other PVCPEDHPELDPE , EVA , PP plastic materials
that can be hot melted .

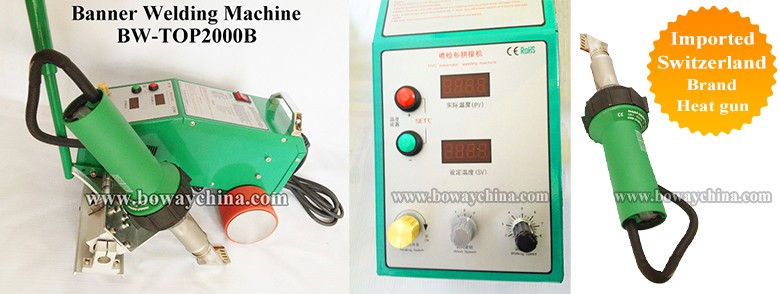

TOP2000B .jpg
Specification Param
Product NameBanner Welding Machine  BW-TOP2000B

Hot air guns

Switzerland brand ( Its heat system is the most advanced in the world

Rated voltage


Rated frequency


Rated power

1600 W

Welding temperature


Temperature fluctution


Welding speed

1-8 m/min

Welding width

20-40 mm


570*420*380 mm

Net weight/ Gross weight

19Kg/22 Kg

Banner welding machine parts.jpg

Main parts :


Power cord


Walking speed button


Left universal wheel


Power switch




LED light


Actual tem display


Heat gun




Tem setting(+)


heat gun positioning handle


Limit switch


Tem setting(-)




Right universal wheel


Set tem display


Press wheel


Pressure for limited switch


Heating switch


Carry handrail


Heat gun sliding shaft


Wind speed button


Small wheel


Holder for heat gun

Advantages Details

Small size, light weight and easy to carry

Digital display function

Adjustable wind speed

Faster welding speed

No fold during welding

Having universal wheels and handrail,,move machine easily

Laser positioning line

LED light,more convenient work in night

Welding parameter Setting

1.Temperature setting

Set desired temperature depends on thickness of the banner and work environment.

setting principle is more thicker for banner, more higher temperature should set.LED display screen would show the temperature of the nozzle and desired temperature we set.

when the set temperature and actual temperature maintain same(temperature fluctuation within ±5 degree). Machine into the standby state.machine.

2.Wind speed setting

Setting wind speed,in general keep wind speed biggest(at No.3),if for thin banners.we can adjust reduced wind speed.

3. Walking speed setting

Setting walking speed,Walking speed should be match temperature for welding(in general set 3-6).setting principle is lower speed for thicker banners.



First,make the picture smooth and tight, take joiner to accurate (about 2-4cm), fixed edges with tape or glue on the ground ( PIC1 ).

Set temperature and walk speed: set temperature and walk speed(according to thickness of banner), in general temperature we set is 350-500 degree Walking speed is around 3-4.

Start welding:when the actual temperature display around the expected value of the set temperature fluctuate (between about ± 5°), then start weld,at begin of weld,use one hand to take one banner up,then hold heat gun press heat gun positioning handle,turn heat gun to left and let the nozzle into overlap of the banner,then begin to as below ( PIC 2 ) .

During welding, let hot air nozzle between two overlap pieces. And be make sure hot air nozzle and Rubber wheel walk in straight line.if not,please adjust by hand.check photo:( PIC3 ).

Finish welding: turn the walking handrail to the right ,machine stop walk,but before cut off the power,we should put the set temperature button to zero.when the actual temperature below 50 degree.we can cut off the main power.or it would damage heat system.

Tips:For first user,we can use waste banner to test and find proper temperature :

we can do like this:take a small banner close the nozzle,if the banner hot melt quickly,it means,the temperature is OK,it not strong or burnt,we can increase or reduce temperature.we can also write down the temperature for this thickness of banner as next welding,based on this temperature.we just need to increase or reduce the temperature depends on thickness of banners.check the welding result ( PIC 4 ) .


Notice :

1. During operating, if the surface cloth is dissolved and scorched or the cloth are not sticked together, please stop to adjust the temperature or speed.

2. During operating,if the seaming part is not in right position, please stop to adjust fixing position.

3. During operating, make sure clothes are flat so that stick together smoothly.

4. The hot wind of heater cannot touch the press-wheel or the rubber of press-wheel is easy to be burned down.

5.Please make sure actual temperature below 50 degree,then turn off the machine.

Maintenance :Take care the nozzle.Use brush to clean if there is dust or block in the nozzle or filter.

Package & Shipment

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original


Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



After-Sales Service

I. Agents Tranining

II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

u       Improper or inadequate maintenance

u       Misusage and mishandling

u       Damaged by a wrong voltage use

u      Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

u        User Manual in English

u        Operation Video

u         Support on-line

u        You can send your technician to our factory to attend the skill training.

Customers  and  Us


1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

   5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

   Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

   Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

   By Sea

  By Plane

  By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

   Payment term: T/T before shipment.

   We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

   Within 15 days after get the payment
