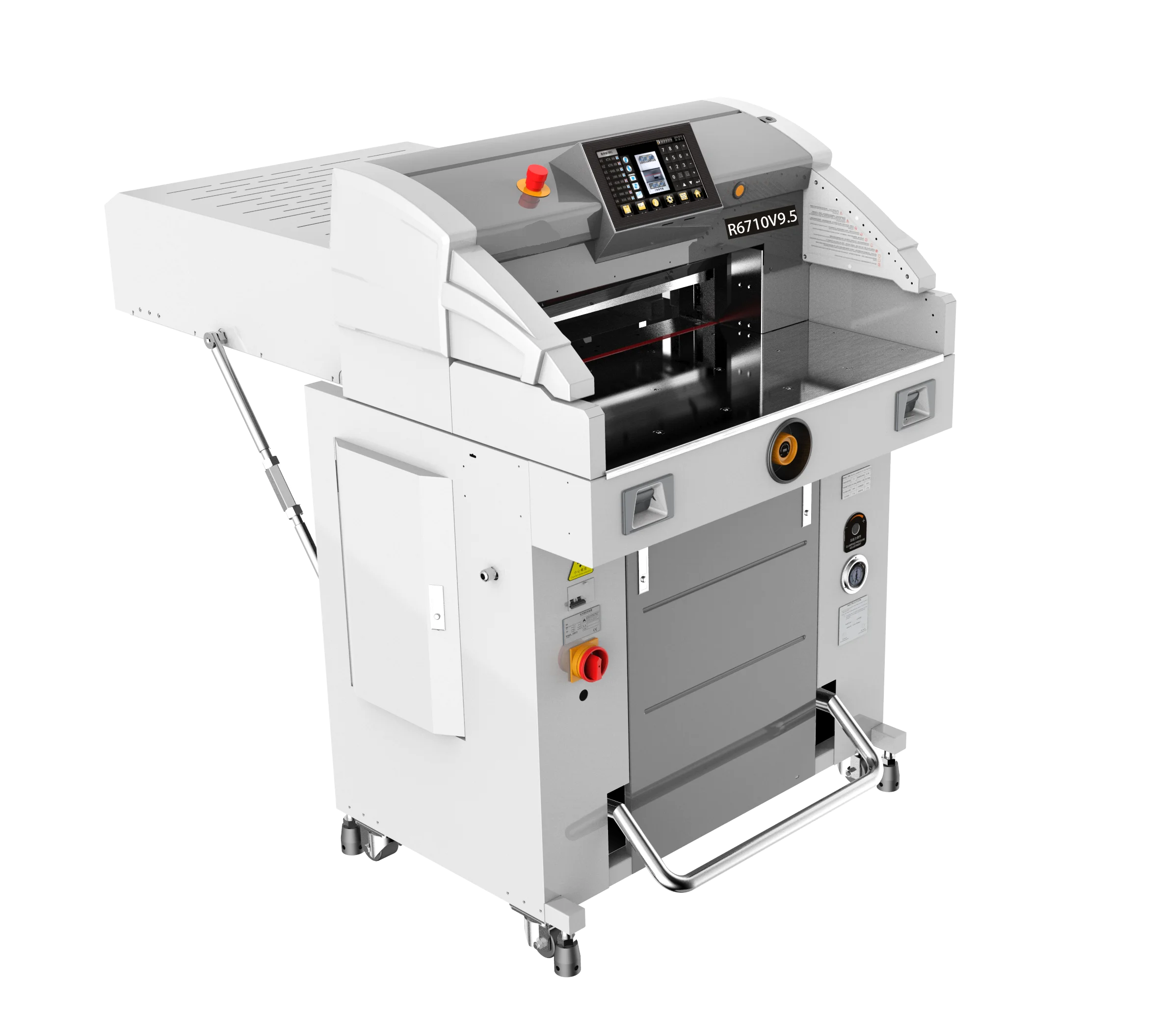

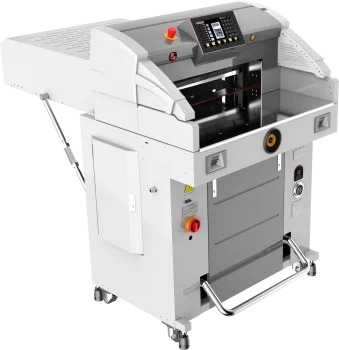

R6710V8 BOWAY supply Hydraulic Programmed paper cutter knife

R6710V8 BOWAY supply Hydraulic Programmed paper cutter knife

  • Modelo: R6710 V8
  • Precio FOB:USD 4000.00-4500.00 / unidad
  • Pedido mínimo:1 unidad
  • Aceptar el pedido mínimo:Yes
  • Disponibilidad:100 unidad / El
  • Lugar original de origen:Ningbo or Shanghai
  • Place of Origin:CN;ZHE
  • Application:Paper cutting machine
  • Brand Name:BOWAY
  • Model Number:R6710 V8

since1996BANNER780

******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

******All rights of photos and imaging reserved by Boway. ******

Welcome  to  Boway

Core Competence

HTB1SG5WGVXXXXbuXFXXq6xXFXXXy

Appearance


                   R5210




                     R6710



Specification Param



BrandBOWAY
bowaychina.en.alibaba.com
TypeR5210 V8R5210  V9R5610 V8R5610  V9R6710 V8R6710 V9
Max Cutting Size (mm)520*520520*520560*560560*560670*670670*670
Max Cutting Thickness (mm)100100100100100100
Min. Cutting Size (mm)202020202020
Position Accuracy (mm)±0.1±0.1±0.1±0.1±0.1±0.1
Cutting Accuracy (mm)±0.2±0.2±0.2±0.2±0.2±0.2
Ball table
Press WayHydraulicHydraulicHydraulicHydraulicHydraulicHydraulic
+Pedal+Pedal+Pedal+Pedal+Pedal+Pedal
Cutting WayHydraulicHydraulicHydraulicHydraulicHydraulicHydraulic
Display7"Touch7"Touch7"Touch10.2"touch7"Touch10.2"touch
ScreenScreenScreenscreenScreenscreen
Program
Arithmetic
Frequency Conversion Motor/Optional/Optional/Optional
Push MotorStep motorServo motor Step motorServo motor Step motorServo motor
Push Speed3.5m/m7m/m3.5m/m7m/m3.5m/m7m/m
Power220V(110V)220V(110V)220V(110V)220V(110V)220V(110V)220V(110V)
±10%,±10%,±10%,±10%,±10%,±10%,
50Hz(60Hz),50Hz(60Hz),50Hz(60Hz),50Hz(60Hz),50Hz(60Hz),50Hz(60Hz),
2000W2000W2000W2000W2300W2300W
Side TableOptionalOptionalOptionalOptionalOptionalOptional
Machine Size (mm)1440x800x1430(side table size :700)1440x800x1430(side table size :700)1455x920x1470(side table size :700)1455x920x1500(side table size :700)1565x1030x1470(side table size :700)1565x1030x1500(side table size :700)
N.W: (Kg)About 420About 420About 470About 470About 520About 520
Advantages Details

Highlight

♦ Touch Screen

Folded back worktable

Air rolling ball front work table

CE standard,  safety latch, safety wall, double auto. Breaker safety

New instruction, Higher accuracy

Touch screen : Optional 7” or 10” touch screen

Setting: Program, equal parts size, manual memory

Before blade cutting,After blade cutting and push,Any setting , intelligent and convenient

Easy to input the size arithmetic,Support insert, delete and Shortcut key

Optional language, parameter , time and inch/mm setting ,and Screen brightness adjustment .Self-checking is simple and directly !

Shortcut key to choose,save !

Centralized control circuit for easy maintenance

Ball table, easy to feeding the paper

More thickness stainless working plate , wear well !

85-88 mm cutting thickness !

 frequency conversion motor, more powerful !(optional)

 Side table - assemble

♦ Foldable and disassemble backstage

♦ Convenient for transport and enter the door









BOWAY R6709 details total.jpg



Package & Shipment

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original

CO, FORM A, FORM F, FORM E etc.

Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



_

After-Sales Service

 Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

u       Improper or inadequate maintenance

u       Misusage and mishandling

u       Damaged by a wrong voltage use

u      Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

u        User Manual in English

u        Operation Video

u         Support on-line

u        You can send your technician to our factory to attend the skill training.

Customers  and  Us

()FAQ

1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

   5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

   Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

   Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

   By Sea

  By Plane

  By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

   Payment term: T/T before shipment.

   We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

   Within 15 days after get the payment
