Boway QZYK920D 8 Program Control Double Hydraulic Double Guide Large Format Paper Cutter

Boway QZYK920D 8 Program Control Double Hydraulic Double Guide Large Format Paper Cutter

  • Modelo: QZYK920D
  • Precio FOB:USD 16000.00-18000.00 / unidad
  • Pedido mínimo:1 unidad
  • Aceptar el pedido mínimo:Yes
  • Disponibilidad:500 unidad / El
  • Lugar original de origen:Shanghai/Ningbo
  • Plazo de entrega:In 15 days after payment De
  • Place of Origin:CN;ZHE
  • Warranty:1 year
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Condition:New
  • Voltage:220v-110v
  • Power(W):3.95kw
  • Dimension(L*W*H):213x217x151cm
  • Weight:2600kg
  • Model Number:QZYK920D
  • Computerized:
  • Type: 8 program control double hydralic double guide guillotine machine

******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

Welcome  to  Boway

Core Competence

We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
Paper Cutting
QZYK-D Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
Appearance


Specification Param



Model
unit
QZYK920DW-8
Max cutting width
cm
92
Max cutting length
cm
100
Max cutting height
cm
13
Max clamping pressure
N
30000
Cutting speed
Cycles/min
45
Cutting motor power
Kw
3
Sending paper motor power
Kw
0.4
Wind pump motor power
Kw
0.55
Net Weight
kg
2600
External dimension(L*W*H)
cm
213×217×151
Packing dimension(L*W*H)
cm
224×137×185
Advantages Details

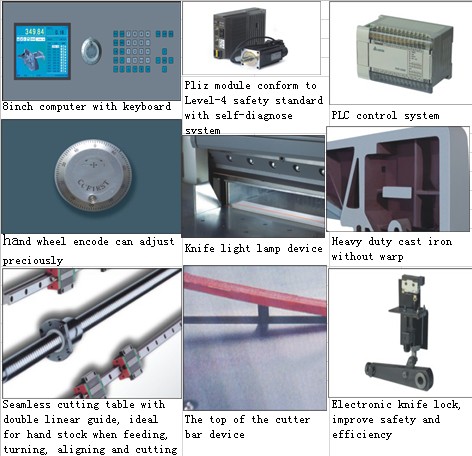

8 inch computer keyboard

This series of program controlled computer adopts industrial human-machine interface, the main part of the computer is industrial chip from America. it has six languages, USB interface and hand wheel encode, which is easy to operate. it can

self-diagnose the malfunction animation operation mode. the program memory can store 5000 programs , each of them can save 999cutting 's datum of different locations. its

storage hours are over 300,000 hours, which ensure the reliability of the performance. paper delivering motor is Japan servo motor , its work speed is 618m/min. And the po-sition accuracy can be 0.01mm.

Double Hydraulic Device

the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling str-ucture, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

Double Guide Device

The paper pusher adopts double imported linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed

paper delivering.

Photo cell

It is equipped with a photo cell safety protection device.

Over load protection device

Convenient knife changing device.

Worktable chrome treatment

The worktable and side board surface are all ado-pted chrome treatment to improve the precision and quality of the machine.

Air ball

Air balls are installed in the worktable. The paper sending work will be easy and accurate.

Cutting controller

both of the user’s hands operate the machine. It can cut paper in one time.

Electronic knife lock

when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

 Safety notice & Glass covers

the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do

 protection and maintenance in time.

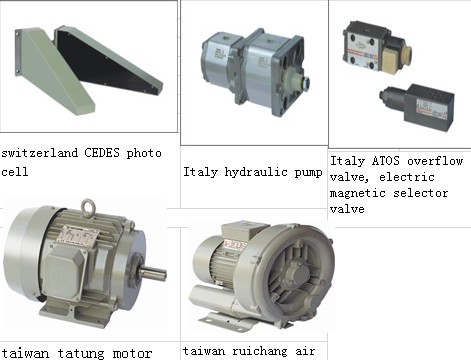

Main electric device are imported from Germany, French, Japan, etc.

Package & Shipment

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original

CO, FORM A, FORM F, FORM E etc.

Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication


After-Sales Service

I. Agents Tranining


II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

u       Improper or inadequate maintenance

u       Misusage and mishandling

u       Damaged by a wrong voltage use

u      Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

u        User Manual in English

u        Operation Video

u         Support on-line

u        You can send your technician to our factory to attend the skill training.

Customers  and  Us


FAQ

1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

   5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

   Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

   Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

   By Sea

  By Plane

  By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

   Payment term: T/T before shipment.

   We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

   Within 15 days after get the payment
