- Product Material:Paper & Paperboard
- Place of Origin:CN;ZHE
- Product Type:Book
- Paper Type:Art Paper
- Paper Type:Cardboard
- Paper Type:Coated Paper
- Paper Type:Fancy Paper
- Paper Type:Kraft Paper
- Paper Type:Newsprint Paper
- Paper Type:Offset paper
- Model Number:BW-T9E/T9G
- Brand Name:Fullar ( Boway's brother )
- Book Cover:Hard Cover
- Binding:Perfect Binding
******The pricture and specifications are subject to change without prior notice. ******
******Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway. ******
Authentic Boway in Office Equipment!!!
Beware of Imitations!!!
Welcome to Boway
We provide more than 300 kinds of office equipment for your need
(You may click the following picture to see more)
How to Choose Your Right Items?
Book Binding by Glue
PUR-EVA 2 in 1 Perfect Binder
Design for Graphic and Digital Print !
Auto Cleaning - Clean your trouble !
Auto Swift between PUR and EVA

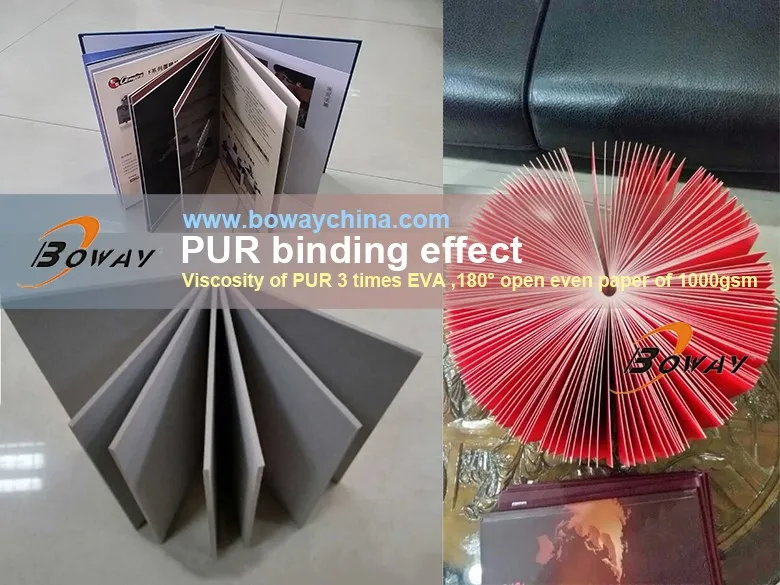

Viscosity of PUR 3 times EVA 180° open even paper of 1000gsm !
No page drop No glue waste So easy to bind !
| Model | T9F(EVA-PUR) | T9G(EVA-PUR) |
| Book length | 420mm | 420mm |
| Book thickness | 58mm | 58mm |
| Speed | 200-300(book/hour) | 200-300(book/hour) |
| Binding way | seal | seal |
| Two glue boxes | automatic switch | automatic switch |
| 2kgs glue box | × | √ |
| 330g glue can | √ | √ |
| Clean function | √ | √ |
| Heat for glue cartridge(330g) | √ | √ |
| Independent dust absorption | × | √ |
| Tidy device | × | √ |
| Eject smoke system | × | √ |
| Melt time | about 30 mins | about 30 mins |
| Cutter | specified PUR cutters | specified PUR cutters |
| Book clamp | automatical | automatical |
| Cover clamp | automatical | automatical |
| Cut folded paper | √ | √ |
| Display | 7"colorful touch screen | 7"colorful touch screen |
| Clamp adjustment | √ | √ |
| Open working table | √ | √ |
| Book table | √ | √ |
| Collect glue function | √ | √ |
| High-power dust absorption | × | × |
| hands-proofing device | √ | √ |
| Working style | pneumatic + electric | pneumatic + electric |
| Test book thickness | √ | √ |
| Creasing unit | Option : Y8 | Option : Y8 |
| Power | AC220V(110V)+-10% 50Hz(60Hz) 3100W | AC220V(110V)+-10% 50Hz(60Hz) 3100W |
| Machine size | 1520*650*1160mm | 1520*650*1160mm |
| Net weight | 290kgs | 300kgs |
♦ Smart control, 7"colorful touch screen, Chinese and English Language support
♦ Built-in closed PUR glue system, pressurized sealing tank for glue 2kgs and cartridge 330g, both back and side gluing
♦ Patented nozzle appplication structure, easy to clean.
♦ Two glue tanks for EVA & PUR, easy swift on demond, meanwhile, EVA can be used as cleaner
♦ Concerning spare parts be Teflon coated,eacy to clean
♦ Mute air pump ensures quite operation for office use inductive touch to open the book carriage.
♦ Smart control the gluing on two end of book spine, no need trimming after bind
♦ Smoke extractor, protect work environment.
♦ On-line work with our Auto-creaser K330C
Auto read out the thickness of book to crease spine lines and opening lines (Please click the ending page's
picture fr.K330C)
♦ New heavy-duty struction.
♦ The patent of new glue heads design.
♦ Independently clean system.
♦ New patent of pneumatic technology.
♦ New patent of sprayer glue system.
♦ New patent of intelligent side glue technology.
♦ Patent of prevent clamping hand technology.
♦ Patent of worktable.
♦ 3 binding mode.
♦ automatic book thickness gauge.
♦ Cleansing facility.
♦ Intelligent control.
♦ Brand new heavy-duty design.
♦ Easy scoring on-line (Optional Unit : Y8,Creaser Partner : K330C )
♦ Open flat brand new cover location device.
♦ Adjustable cover clamping station.
♦ Auto-side glue.
♦ Non-glue ends control.
| Terms of payment | T/T, L/C, Westion Union. |
| Terms of trade | FOB, CFR, CIF |
| Mode of transportation | By Sea, By Air |
| Port of shipment | Shanghai or Ningbo |
| Rerfence date of delivery | About 15 days, Instant supply of hot-selling products |
| Certificate of Fumigation | √ |
| Certificate of Original | CO, FORM A, FORM F, FORM E etc. Guarantee customer to import goods at the preferential tariff rate |
| Certificate of Inspection | √ |
| Documents Authentication | √ |
I. Agents Tranining
II. Warranty
We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
u Improper or inadequate maintenance
u Misusage and mishandling
u Damaged by a wrong voltage use
u Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
u User Manual in English
u Operation Video
u Support on-line
u You can send your technician to our factory to attend the skill training.
Customers and Us
FAQ
1.What’s the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and
some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
7.What’s the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What’s the delivery time?
Within 15 days after get the payment
