Automatic 65m/min presswork Single or Double Sided Roll Film Heated laminator

Automatic 65m/min presswork Single or Double Sided Roll Film Heated laminator

  • Modelo: SAFM-800A/800B
  • Precio FOB:USD 39640.00-50325.00 / unidad
  • Pedido mínimo:1 unidad
  • Aceptar el pedido mínimo:Yes
  • Disponibilidad:30 unidad / El
  • Lugar original de origen:Ningbo or Shanghai
  • Plazo de entrega:Shipped in 31 days after payment De
  • Type:Laminating Machine
  • Place of Origin:CN;ZHE
  • Power:22kw/30kw
  • Brand Name:OEM/ODM need to inquire
  • Condition:New
  • Driven Type:Pneumatic
  • Packaging Material:Paper
  • Application:Commodity
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Voltage:ODM
  • Certification:CE
  • Packaging Type:Film
  • Dimension(L*W*H):5300x1650x1700mm/6000X2500X1900mm
  • Automatic Grade:Automatic
  • Weight:3000kg/3200kg
  • Model Number:SAFM-800A/800B
  • Packaging Material:presswork
  • Application:Presswork hot roll film laminating

since1996BANNER780

******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

******All rights of photos and imaging reserved by Boway. ******

Related Products

      You may like the related items as the following clicking image

SW-1050G.jpg SA-540Y SADF-540

Welcome  to  Boway

HTB1SG5WGVXXXXbuXFXXq6xXFXXXy

We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
IndustrialWide Format Hot Roll Film LaminatingforPressworkinPrinting Press
Anti-curvature Device-BOWAY.jpg
Appearance

800A 800B.jpg

Specification Param



Product NameFully Automatic Single SidedLaminatorFully Automatic Single and Double SidedLaminator
Model No.SAFM-800ASAFM-800B
SupplierBOWAY
Webbowaychina.en.alibaba.com
Max Paper Size780X1040mm 780X1040mm
Min Paper Size300X300mm300X300mm
Paper Thickness100-500 g/m2105-500 g/m2
Laminating Speed
0-65 m/min
0-65m/min
Gross Power
22kw
30kw
Weight3000kg3200kg
Overall Dimensions5300x1650x1700mm6000X2500X1900mm
Pre-stackerinquire1850mm
Feature

Single sided lamination;

Standard With Jogger;
OptionalWith Automaic Stacker.

Single and Double lamination;

Automaic Stacker.

Advantages Details

 BOWAYSAFM-800A Fully Automatic Single SidedLaminator

SAFM-800A feature total.jpg

 BOWAYSAFM-800B Fully Automatic Double Sided Laminator


High Light

Single Sided Lamination (SAFM-800A)

Single and Double Sided Lamination (SAFM-800B)

Feature - SAFM-800A

SAFM serial fully automatic laminator is designed for thermal film lamination. This laminator is composed of feeding unit, laminating unit and paper separation unit and paper collection system.The electric and pneumatic system is equipped with programmable control (PLC). This machine centralizes the features of compact structure, high automatization and humanized operation design.

Overlapping Regulator

Servo control and front lay to gurantee accuracy of paper overlapping.

Smart Constant Temperature Heating Roller

Heating roller equipped with built-in heater,temperature measuring sensor and temperature controller to make the temperature stable and constant.

Film Shaft

Air shaft with dividing rule make the loading,unloading and positioning of the film more accurate.The extension of film is controlled by pneumatic breaker.

Conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.

Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.

Electrical System

Sch***der PLC inverter O*ron and other international brand parts make the machine run smoothly,easy adjust.

Separation System

Pneumatic separation system to separate the paper stably and quickly.

Anti-curvature Device

Equipped with anti-curve device to avoid curvature of thin paper.

Paper Feeding System

Equiped with paper pre-stacker,servo controlled feeder and paper miss sensor protector to guarantee the sequence of paper feeding.

Delivery

Corrugating delivery system which can collect the paper better.

Feature - SAFM-800B

Auto Feeder

This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.

Electromagnetic Heater

Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.

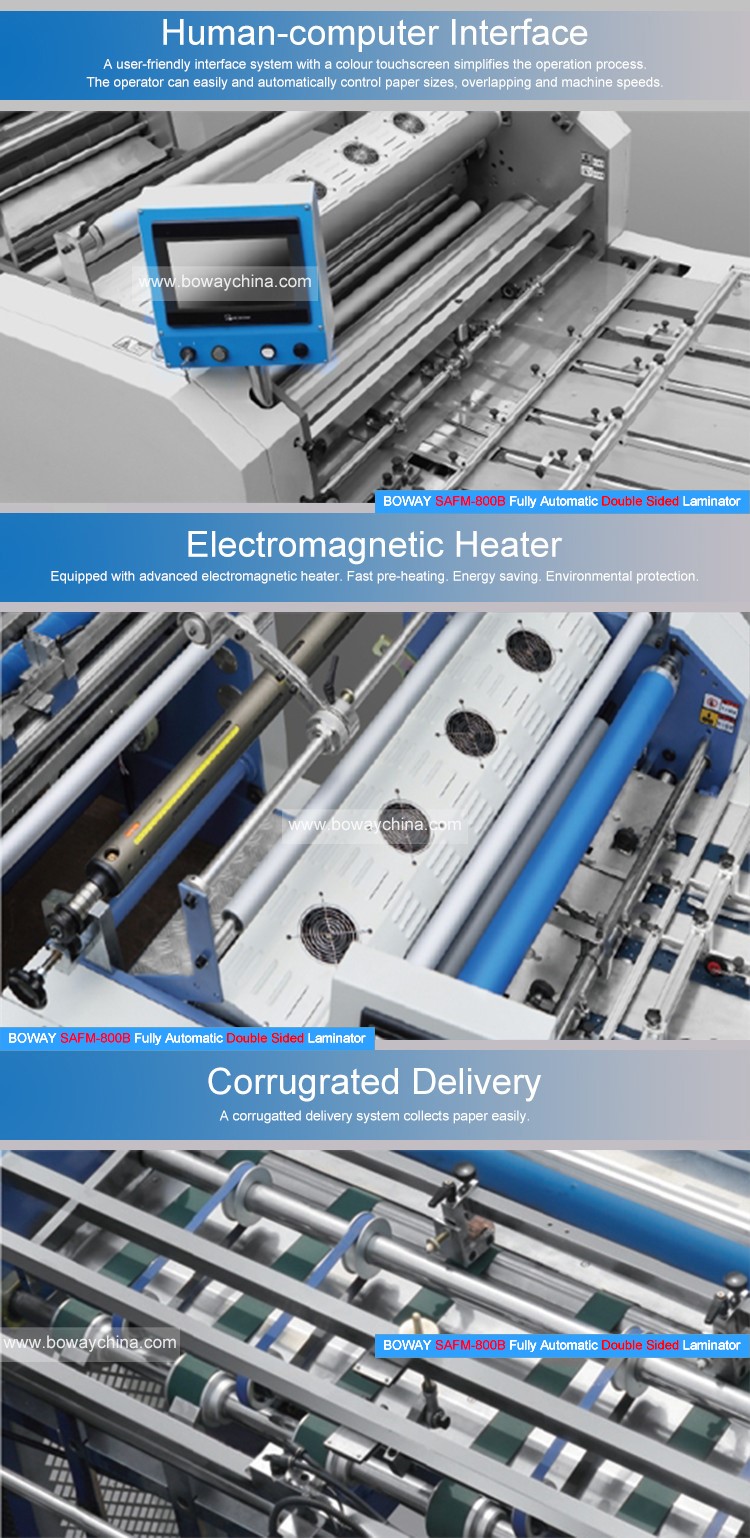

Human-computer Interface

A user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

Separating System

Pneumatic separation system to separate the paper stably and quickly.

Double Film Shaft

Saving time of film loading and uploading,improving efficiency.

Corrugrated Delivery

A corrugatted delivery system collects paper easily.

Anti-curvature Device

Equiped with anti-curve device to avoid curvature of thin paper

Automatic Stacker

Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.

Overlapping regulator

Servo control and front lay to gurantee accuracy of paper overlapping.

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original

CO, FORM A, FORM F, FORM E etc.

Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



_

After-Sales Service

I. Agents Tranining

II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

♦  Improper or inadequate maintenance

     Misusage and mishandling

     Damaged by a wrong voltage use

     Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

   User Manual in English

   Operation Video

   Support on-line

   You can send your technician to our factory to attend the skill training.

Customers  and  Us

()FAQ

1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

   5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

   Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

   Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

   By Sea

   By Plane

   By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

   Payment term: T/T before shipment.

   We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

   Within 15 days after get the payment.
