- Type:Laminating Machine
- Place of Origin:CN;ZHE
- Power:13kw
- Brand Name:OEM need to inquire
- Condition:New
- Driven Type:Electric
- Packaging Material:Paper
- Application:Commodity
- After-sales Service Provided:Engineers available to service machinery overseas
- Voltage:220V , Custom design
- Packaging Type:Film
- Dimension(L*W*H):3300x1150x1450mm
- Automatic Grade:Semi-Automatic
- Weight:1000kg
- Model Number:SFML-520B
- Application:Graphic shop,GOV,School,Office

******The pricture and specifications are subject to change without prior notice. ******
******Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway. ******
Related Products
You may like the related items as the following clicking image

Welcome to Boway

We provide more than 300 kinds of office equipment for your need
(You may click the following picture to see more)

How to Choose Your Right Items?
Product Uses
SFML-520is a small semi-auto laminating machine which is designed and manufactured upon the market requirements. The machine has the feature of compact structure and easy operation. The electric and pneumatic system is controlled by PLC system. And one person can operate it easily. When the operator inputs paper size on touch screen, the machine can realize automatically paper lamination and separation.
SFML-520Bsemi-autodouble side film laminating machine is a small laminator which is designed and manufactured upon the market needs. The machine has the feature of compact structure and easy operation. The electric and pneumatic system is controlled by PLC system, color touch screen. And one person can perate it easily. When the operator inputs paper size on touch screen, the machine can realize automatically paper lamination and cut processes, and is an excellent performance of lamination equipment which is a good choice for small and medium-size enterprises.To suit both single side and double sidelamination .
Specification Param
Product Name | Simi-AutomaticSingle SidedLaminator | Semi-AutomaticSingle and Double Sided Laminator |
Model No. | SFML-520
| SFML-520B |
Supplier | BOWAY |
Web | bowaychina.en.alibaba.com |
Max Paper Size | 500mm | 520mm |
Paper Thickness | 105-500g/m2 | 105-500g/m2 |
Laminating Speed | 0-20m/min | 0-25m/min |
Gross Power | 7kw | 13kw |
Weight | 400kg | 1000kg |
Overall Dimensions | 2500x1000x1500mm | 3300x1150x1450mm |
Feature | Single sidedlamination; Standard With Jogger; | Single and Doublelamination; Standard With Jogger; |
Advantages Details
High Light
♦ Single Sided Lamination (SFML-520)
♦Single and Double Sided Lamination (SFML-520B)
Feature - SFML-520

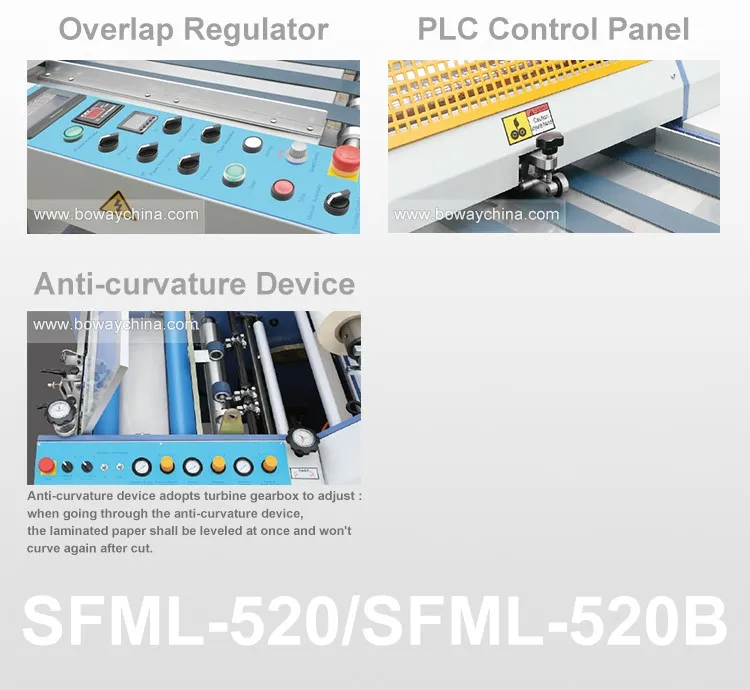

♦ Man-machine interface system with color touch screen simplies operation.
♦ Pneumatic pressuring system provides steady pressure to guarantee good laminating quality. The pressure is adjustable upon requests.
♦ Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
♦ Film perforating wheel perforates film edge for the automatic cut of laminated paper.
♦ Pneumatic separating system realizes automatic paper cut as long as the operator inputs the paper size on the touch screen.
Feature - SFML-520B
♦Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
♦ Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, working status of the machine can be checked at any time.
♦Upper and down heating roller are equipped with special heater for raising temperature. Individual temperature control perfected the temperature keep steady,ensure the precision of double side lamination temperature.
♦Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
♦Pneumatic separator system realizes automatic paper separation.
♦After separation,paper sheets are collected by jogger.

Trading Terms
Terms of payment | T/T, L/C, Westion Union. |
Terms of trade | FOB, CFR, CIF |
Mode of transportation | By Sea, By Air |
Port of shipment | Shanghai or Ningbo |
Rerfence date of delivery | About 15 days, Instant supply of hot-selling products |
About Shipment
Certificate of Fumigation | √ |
Certificate of Original | CO, FORM A, FORM F, FORM E etc. Guarantee customer to import goods at the preferential tariff rate |
Certificate of Inspection | √ |
Documents Authentication | √ |

After-Sales Service
I. Agents Tranining

II. Warranty
We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
♦ Improper or inadequate maintenance
♦ Misusage and mishandling
♦ Damaged by a wrong voltage use
♦ Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
♦ User Manual in English
♦ Operation Video
♦ Support on-line
♦ You can send your technician to our factory to attend the skill training.
Customers and Us
FAQ
1.What’s the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
7.What’s the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What’s the delivery time?
Within 15 days after get the payment.

520mm Semi-auto 2 Sided Film Heating Roll paper laminating machine a3 size
