500mm paper Semi-auto Single Side heated roll film book cover laminating machine

500mm paper Semi-auto Single Side heated roll film book cover laminating machine

USD 8280.00-8674.00 / unidad
Pedido mínimo:
1 unidad
30 unidad / El
Lugar original de origen:
Ningbo or Shanghai
Plazo de entrega:
Shipped in 31 days after payment De
  • Type:Laminating Machine
  • Place of Origin:CN;ZHE
  • Power:7kw
  • Condition:New
  • Driven Type:Pneumatic
  • Packaging Material:Paper
  • Application:Commodity
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Voltage:110V/220V , Custom design
  • Packaging Type:Film
  • Dimension(L*W*H):2500x1000x1500mm
  • Automatic Grade:Semi-Automatic
  • Weight:400kg
  • Model Number:SFML-520
  • Application:Graphic shop,GOV,School,Office


******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

******All rights of photos and imaging reserved by Boway. ******

Related Products

      You may like the related items as the following clicking image

SW-1050G.jpg SAFM-800B.jpg SA-540Y.jpg

Welcome  to  Boway


We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
SFML-520is a small semi-auto laminating machine which is designed and manufactured upon the market requirements. The machine has the feature of compact structure and easy operation. The electric and pneumatic system is controlled by PLC system. And one person can operate it easily. When the operator inputs paper size on touch screen, the machine can realize automatically paper lamination and separation.

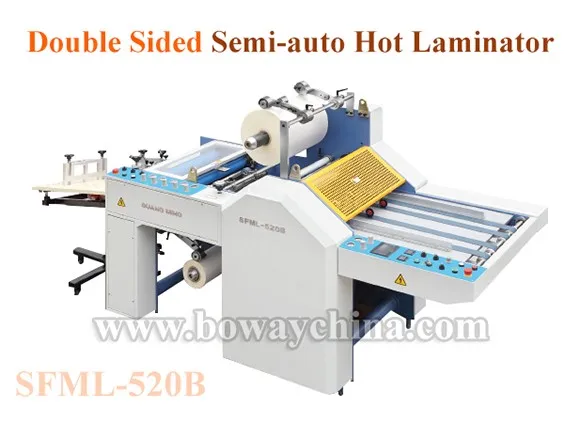

SFML-520Bsemi-autodouble side film laminating machine is a small laminator which is designed and manufactured upon the market needs. The machine has the feature of compact structure and easy operation. The electric and pneumatic system is controlled by PLC system, color touch screen. And one person can perate it easily. When the operator inputs paper size on touch screen, the machine can realize automatically paper lamination and cut processes, and is an excellent performance of lamination equipment which is a good choice for small and medium-size enterprises.To suit both single side and double sidelamination .
Laminating Effect BOWAY SFML-520 520B .jpg
SFML-520 WEB 540.jpgSFML-520B WEB540.jpg
Specification Param


Product NameSimi-AutomaticSingle SidedLaminatorSemi-AutomaticSingle and Double Sided Laminator
Model No.SFML-520
Max Paper Size500mm520mm
Paper Thickness105-500g/m2105-500g/m2
Laminating Speed0-20m/min0-25m/min
Gross Power7kw13kw
Overall Dimensions2500x1000x1500mm3300x1150x1450mm

Single sidedlamination

Single and Doublelamination;

Standard With Jogger;

Advantages Details

High Light

Single Sided Lamination (SFML-520)

Single and Double Sided Lamination (SFML-520B)

Feature - SFML-520

Man-machine interface system with color touch screen simplies operation.
Pneumatic pressuring system provides steady pressure to guarantee good laminating quality. The pressure is adjustable upon requests.
Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
Film perforating wheel perforates film edge for the automatic cut of laminated paper.
Pneumatic separating system realizes automatic paper cut as long as the operator inputs the paper size on the touch screen.

Feature - SFML-520B

Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, working status of the machine can be checked at any time.
Upper and down heating roller are equipped with special heater for raising temperature. Individual temperature control perfected the temperature keep steady,ensure the precision of double side lamination temperature.
Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
Pneumatic separator system realizes automatic paper separation.
After separation,paper sheets are collected by jogger.

SFML-520 520B FEATURE.jpg

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original


Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



After-Sales Service

I. Agents Tranining

II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

♦  Improper or inadequate maintenance

     Misusage and mishandling

     Damaged by a wrong voltage use

     Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

   User Manual in English

   Operation Video

   Support on-line

   You can send your technician to our factory to attend the skill training.

Customers  and  Us


1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

   5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

   Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

   Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

   By Sea

   By Plane

   By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

   Payment term: T/T before shipment.

   We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

   Within 15 days after get the payment.
