30m/min A2 A3 A4 Full Automatic Single or Double Sided Film Heat laminator
- Modelo: SADF-540/SADF-540B
- Precio FOB:USD 26830.00-36520.00 / unidad
- Pedido mínimo:1 unidad
- Aceptar el pedido mínimo:Yes
- Disponibilidad:30 unidad / El
- Lugar original de origen:Ningbo or Shanghai
- Plazo de entrega:Shipped in 31 days after payment De
- Place of Origin:CN;ZHE
- Model Number:SADF-540/SADF-540B
- Brand Name:OEM need to inquire
- Paper Size:A3
- Paper Size:A4
- Type:Heated Roll Laminator
- Paper Size:A2
******The pricture and specifications are subject to change without prior notice. ******
******Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway. ******
Welcome to Boway
We provide more than 300 kinds of office equipment for your need
(You may click the following picture to see more)
How to Choose Your Right Items?
|Product Name||Fully Automatic Single SidedLaminator||Fully Automatic Single and Double SidedLaminator|
|Max Paper Size||540x780mm||540x780mm|
|Min Paper Size||210x290mm||210x290mm|
Standard With Jogger;
Single and Doublelamination;
Standard With Jogger;
♦ Single Sided Lamination (SADF-540)
♦ Single and Double Sided Lamination (SADF-540B)
Feature - SADF-540
♦ Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
♦ Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
♦ High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
♦ Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
♦ Air expansion shaft releases film roll, and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient.
♦ The combination of air expansion shaft and braking device can adjust film release tension and speed.
♦ Film cutter cuts film width to make it meet paper size.
♦ Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
♦ Pneumatic cutting system realizes automatic paper cut.
Feature - SADF-540B

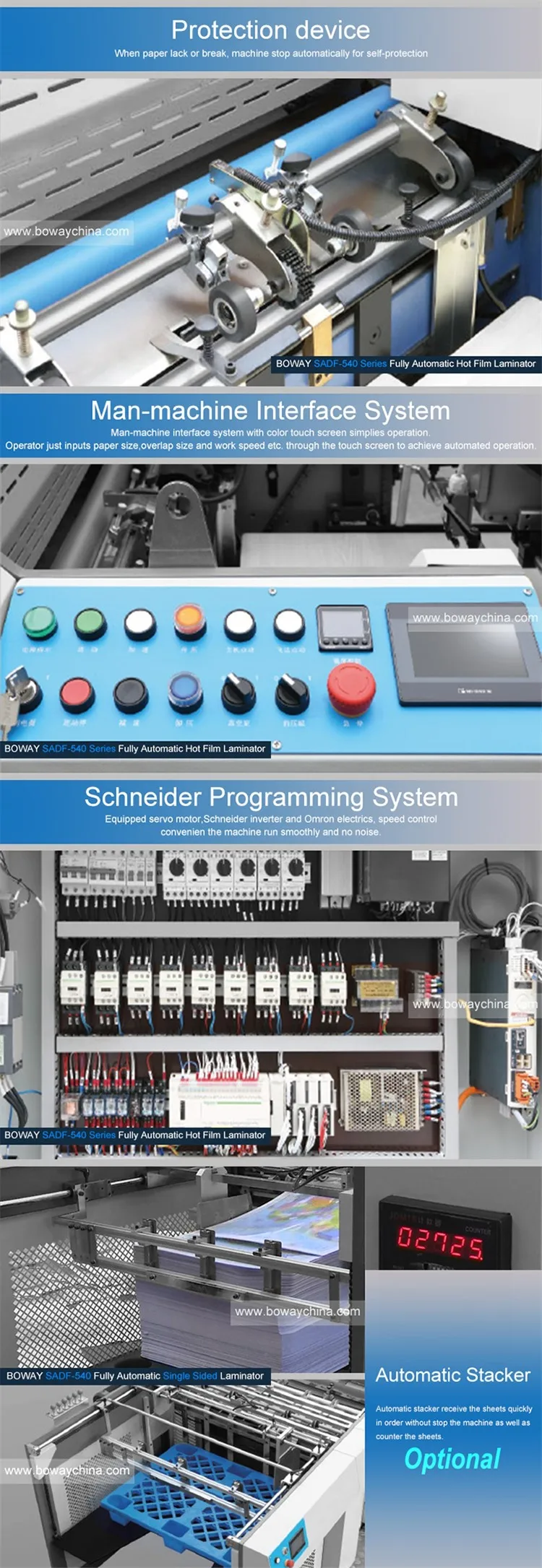

♦ Protection device
When paper lack or break, machine stop automatically for self-protection.
♦ Schneider programming system
Equipped servo motor,Schneider inverter and Omron electrics, speed control convenien the machine run smoothly and no noise.
♦ Intelligent constant temperature roller
On the heating roller and the lower heating roller equipped with special heater for heating, temperature control individually.Temperature performance is excellent and make sure double-side laminating temperature.

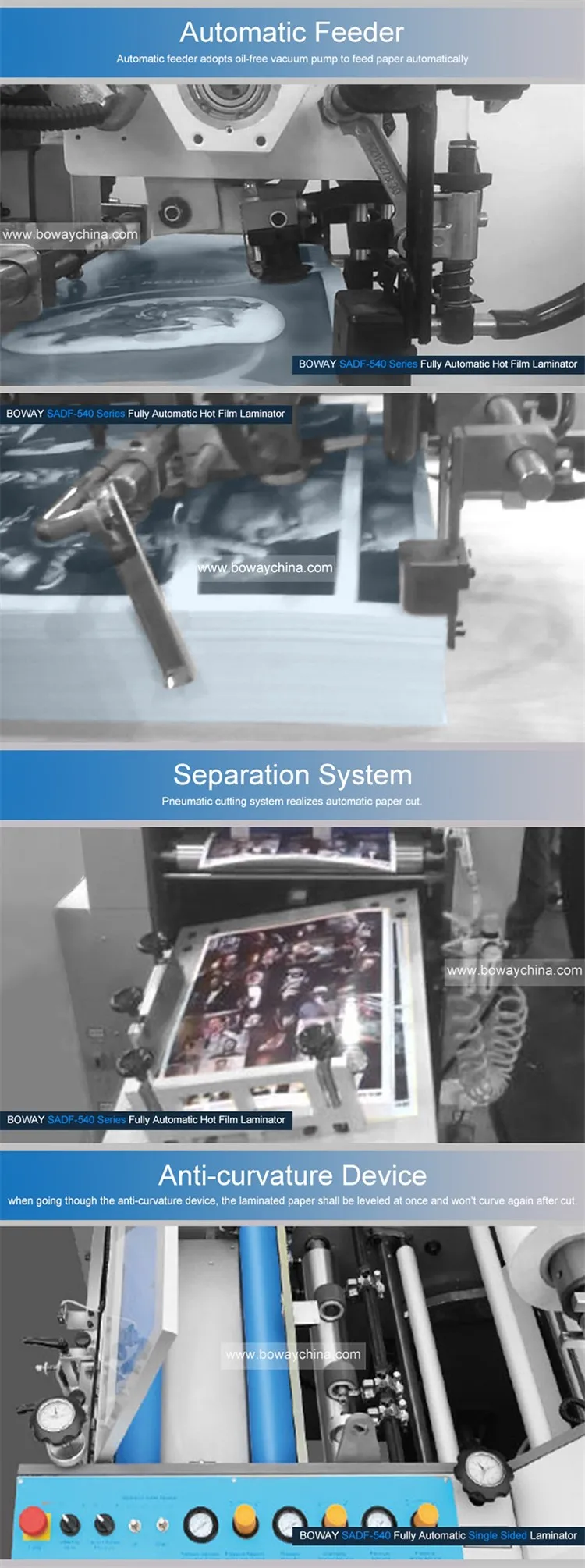

♦ Pneumatic separator system
Pneumatic separator system automatically separate paper.
♦ Automatic pneumatic system
Automatic pneumatic system to provide stable pressure laminating machine.
Pressure can be adjusted automatically according to need.
After separating the paper received by jogger or automatic stacker(optional).
|Terms of payment||T/T, L/C, Westion Union.|
|Terms of trade||FOB, CFR, CIF|
|Mode of transportation||By Sea, By Air|
|Port of shipment||Shanghai or Ningbo|
|Rerfence date of delivery|
About 15 days, Instant supply
of hot-selling products
|Certificate of Fumigation||√|
|Certificate of Original|
CO, FORM A, FORM F, FORM E etc.
Guarantee customer to import goods
at the preferential tariff rate
|Certificate of Inspection||√|
I. Agents Tranining
We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
♦ Improper or inadequate maintenance
♦ Misusage and mishandling
♦ Damaged by a wrong voltage use
♦ Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
♦ User Manual in English
♦ Operation Video
♦ Support on-line
♦ You can send your technician to our factory to attend the skill training.
Customers and Us
1.What’s the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By courier, TNT , DHL, Fedex, UPS Etc
7.What’s the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What’s the delivery time?
Within 15 days after get the payment.
